G2 STEEL PROFILE - TECHNICAL DETAIL

Steel Profile Information

You can be assured that our Steel Frame Glazed Doors and Windows are manufactured using the highest quality steel and glazing with world leading workmanship. Our Steel profile is made from international quality rolled steel with a modern slim profile.


We have steel profile options including FPS50, W40, W37, W20, Swiss Ottostumm profile. The FPS50 Slimline Tubular Steel Frame Doors and Windows are made from Cold Roll Formed Steel Profiles.  All steel profile is pre-coated with Zinc-Magnesium for corrosion protection.  The W40 Swiss Ottostumm and W20 Ottostumm profiles are Hot Rolled Steel Profiles. We can also offer Thermally Broken Steel Profile.


See the Technical Steel Profile drawings, measurements and information below. Please ask us to send you any further detail or CAD Shop Drawing.


We have advanced knowledge in construction and experienced in working together with clients and architects on best practice Steel project design and solutions.


Opening Direction - As we custom make all of our Steel Frame Doors to your specifications you can choose any type of opening swing direction to suit your project. We can also advise on most suitable positioning at site measure.


Jamb Sizing - We have three standard Jamb Sizes for different construction methods and wall thicknesses. Custom jamb sizes on request. 50mm x 30mm, 100mm x 30mm or 150mm x 30mm.


Threshold -  External Doors come with a steel weather seal threshold which is welded to the jamb. Internal Doors can have the option of no sill/threshold.

ASK US FOR MORE TECHNICAL STEEL DETAIL AND CAD SHOP DRAWINGS

G2 STEEL PROFILE - TECHNICAL DETAIL - FPS50.

FPS50 STANDARD RANGE -  SLIMLINE TUBULAR STEEL. PRECISION COLD FORMED STEEL PROFILES "P" PROFILE DESIGN.

ASK US FOR MORE STEEL PROFILE TECHNICAL DETAIL AND CAD SHOP DRAWINGS

G2 STEEL PROFILE - TECHNICAL DETAIL - W40 SWISS OTTOSTUMM

W40 - STEEL PROFILE TECHNICAL DRAWINGS - SOLID HOT ROLLED SWISS HOT ROLLED STEEL PROFILE. SWISS OTTOSTUMM.

ASK US FOR MORE STEEL PROFILE TECHNICAL DETAIL AND CAD SHOP DRAWINGS
W40

W40

W40

W40

G2 STEEL PROFILE - TECHNICAL DETAIL - W20 SWISS OTTOSTUMM

W20 STEEL PROFILE TECHNICAL DRAWINGS - SOLID HOT ROLLED SWISS STEEL PROFILE SWISS OTTOSTUMM

ASK US FOR MORE STEEL PROFILE TECHNICAL DETAIL AND CAD SHOP DRAWINGS
W20

W20

W20

W20

FIXING METHODs of STEEL FRAME GLASS DOORS

Holes

Sample of G2 Steel Door Steelframe. Steel Double Doors with your choice of hardware.

  Suited for double brick construction where you are inserting the door or window frame into an existing opening.

Fins

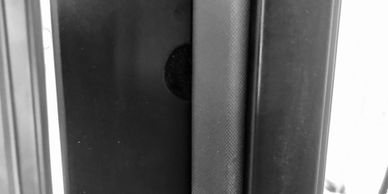

Quality Steel Door fixings for Perth homes

 Suited for timber/steel frame construction where a weather seal fin is required. Also suited to Double Brick construction where the frame can be bricked in during construction.

Tabs

Tabs

Sample of our quality G2 Steel Double Door frame at our Perth factory.

 Suited for timber/steel frame construction where a weather seal fin is not required.
